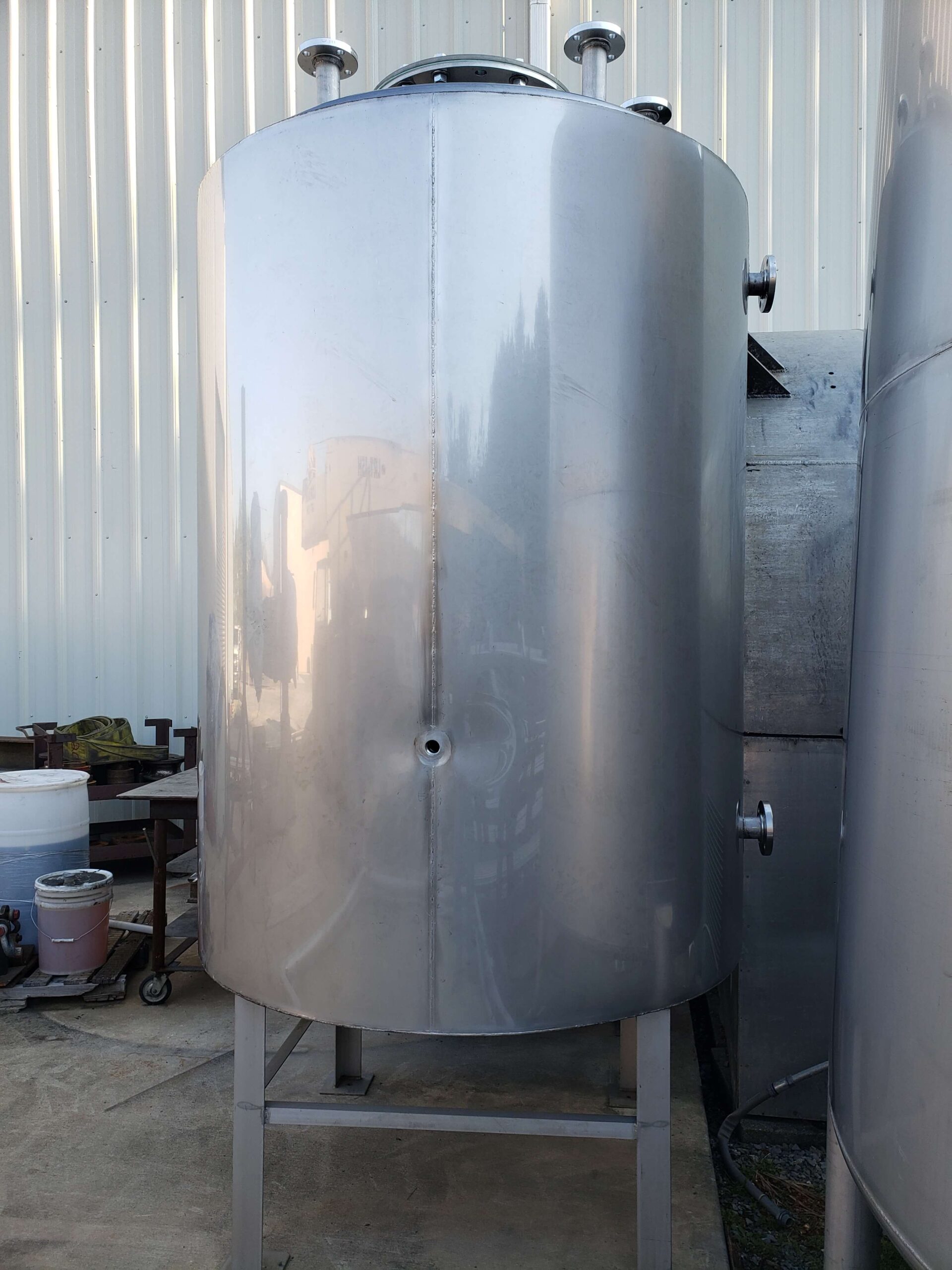

750 Gallon Insulated Storage Tank

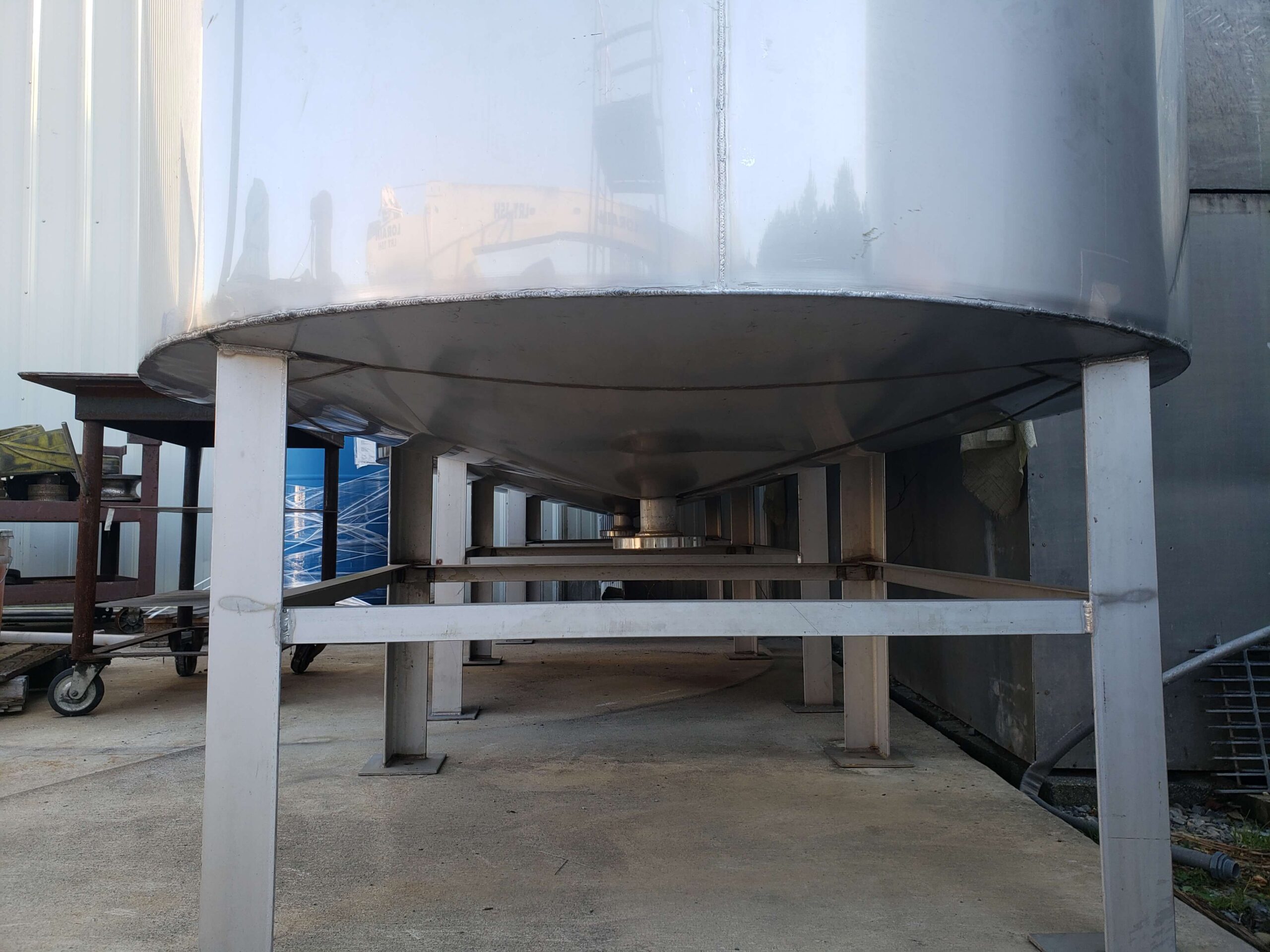

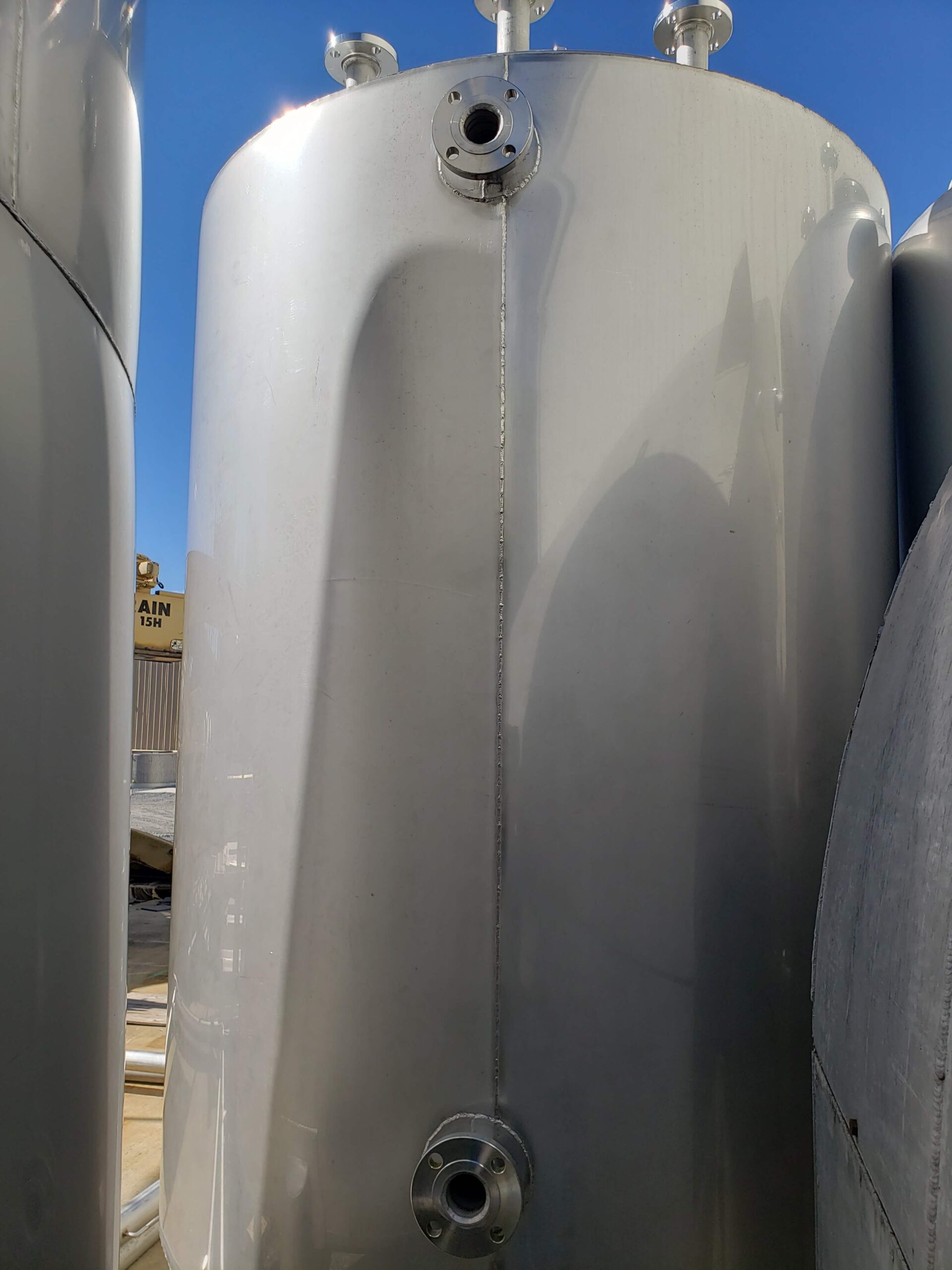

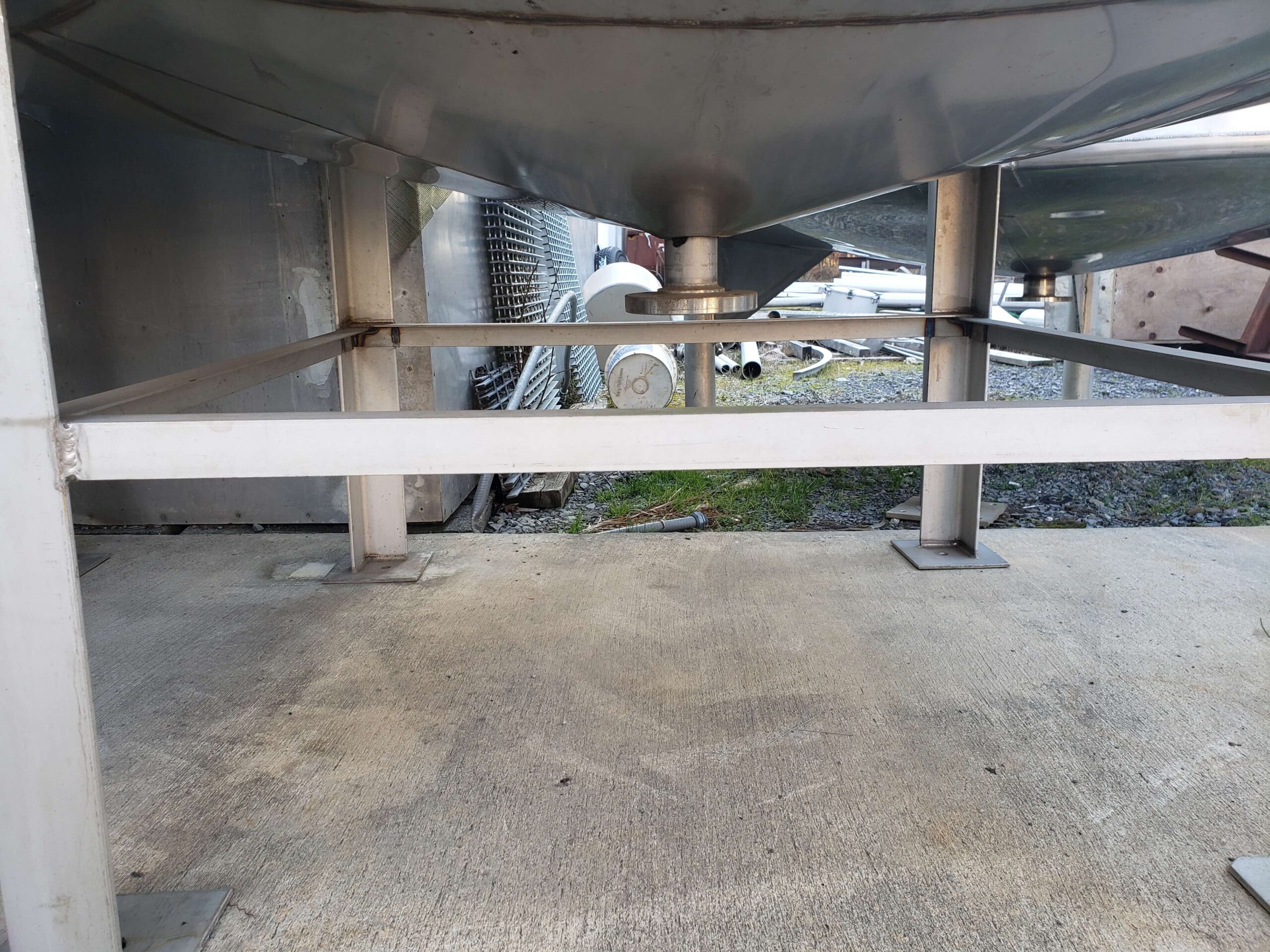

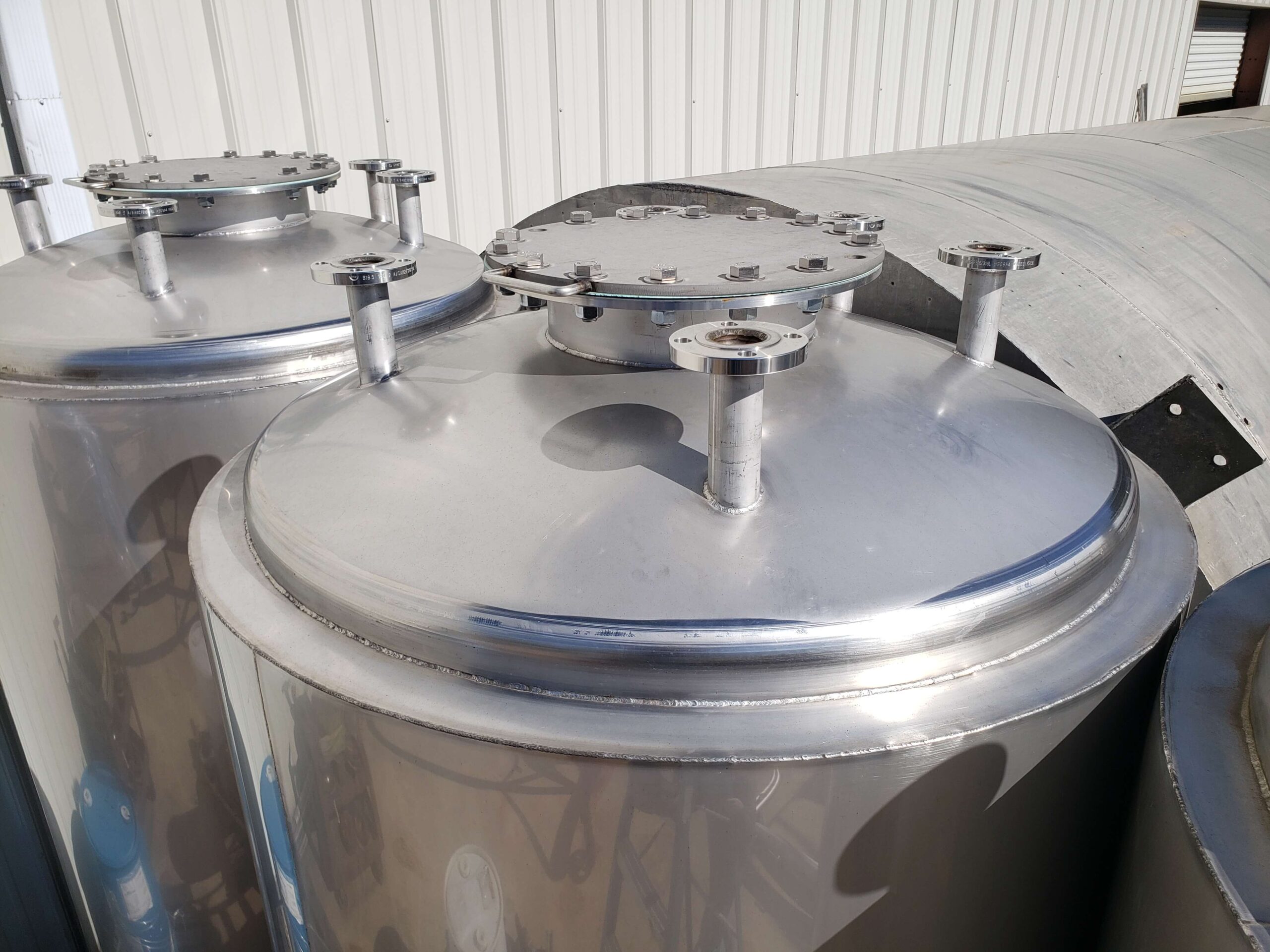

54" diameter x 72" straight shell standard flange and dish top and bottom TANK MATERIAL AND CONSTRUCTION type 316L 2B finish 12 gauge through out All butt weld construction. Heliarc/plasma welded. All welds passivated. TANK EQUIPPED WITH 1 - 16" flange in top center for man way 1 - 16" blind flange with garlock gasket 1 - 2" flange inlet 1 - 2" flange outlet 1 - 2" flange for nitrogen 1 - 2" flange for vent 3 - 2" flanges for spares 1 - 1" coupling for thermo weld. 1 - grounding clip 2 - lifting lugs Mounted on (4) 3" x 3" x 1/4" stainless steel angles with base plates with hole for anchoring. Approximately 17.5 clearance from floor. Side and bottom Insulated with 3" of mineral wool insulation. Jacketed with a welded 14 gauge type 304 stainless steel jacket
