9000 Gallon Insulated Stainless Steel Storage Tanks

These 9,000 gallon insulated stainless steel storage tanks are designed for efficient material storage and temperature-controlled processing in demanding industrial environments. Manufactured by Bendel (Charlotte, NC), these stainless steel tanks are constructed from durable T-304L stainless steel, providing excellent corrosion resistance and long-term reliability for a wide range of applications.

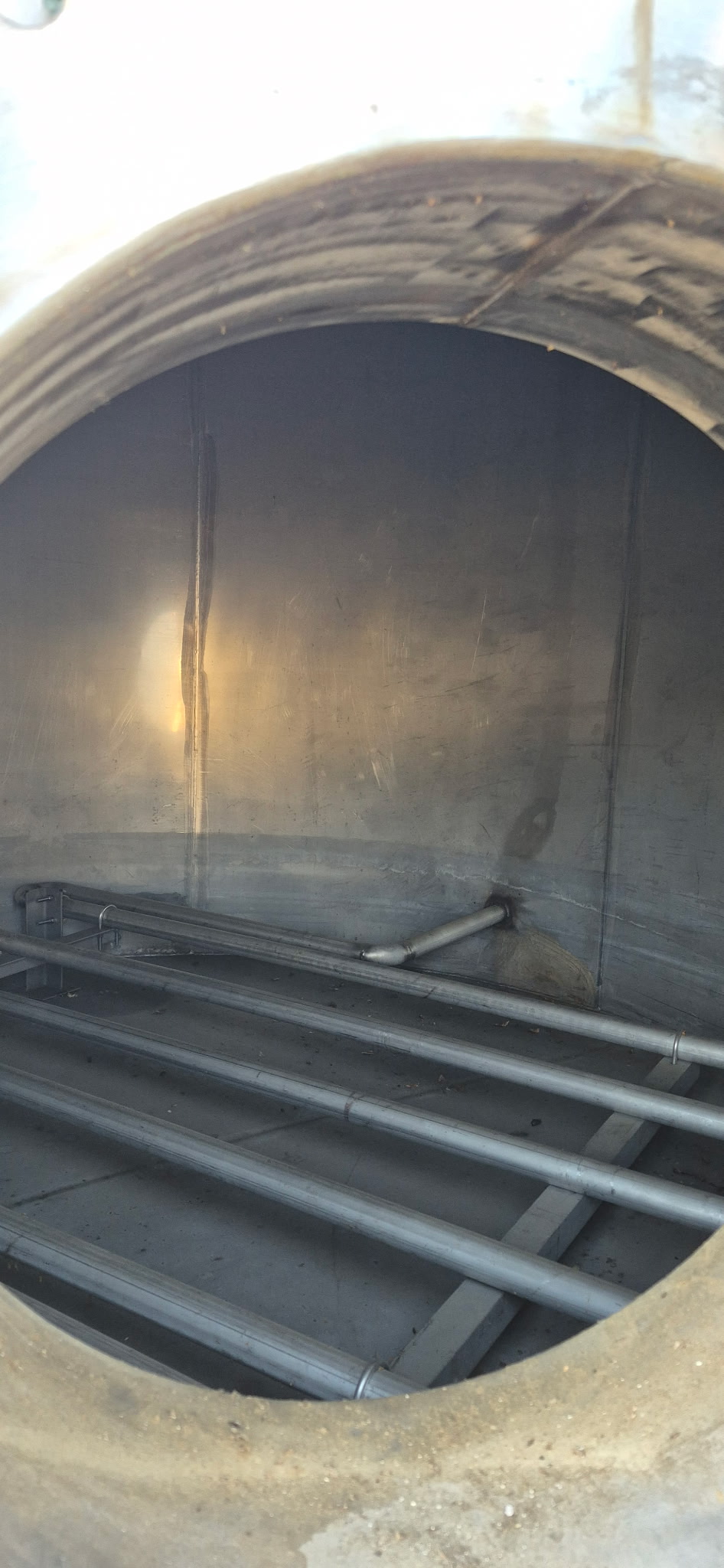

Each stainless steel storage tank features integrated steam coils located at the bottom, allowing for controlled heating and temperature maintenance of stored materials. One tank includes seven rows of 2" steam coils in the bottom, while the other two tanks are equipped with five turns of 2" coils along the bottom wall, offering flexibility depending on process requirements.

The tanks are insulated with fiberglass and finished with metal cladding, helping maintain consistent internal temperatures and improve energy efficiency. The insulation can remain in place for shipping, making installation more convenient for buyers.

Designed for durability and accessibility, each tank is supported by four heavy-duty steel I-beam legs with foot pads for stable installation. A side-mounted bolted manway with lifting davit allows for safe access and maintenance, while the overall shell dimensions of approximately 8 feet wide by 24 feet high provide substantial storage capacity without excessive floor space requirements.

With three units available, these stainless steel storage tanks are an excellent solution for facilities needing reliable, insulated storage tanks for liquid products, food processing, or industrial material handling.

Key Features & Specifications

• 9,000 gallon insulated stainless steel storage tanks

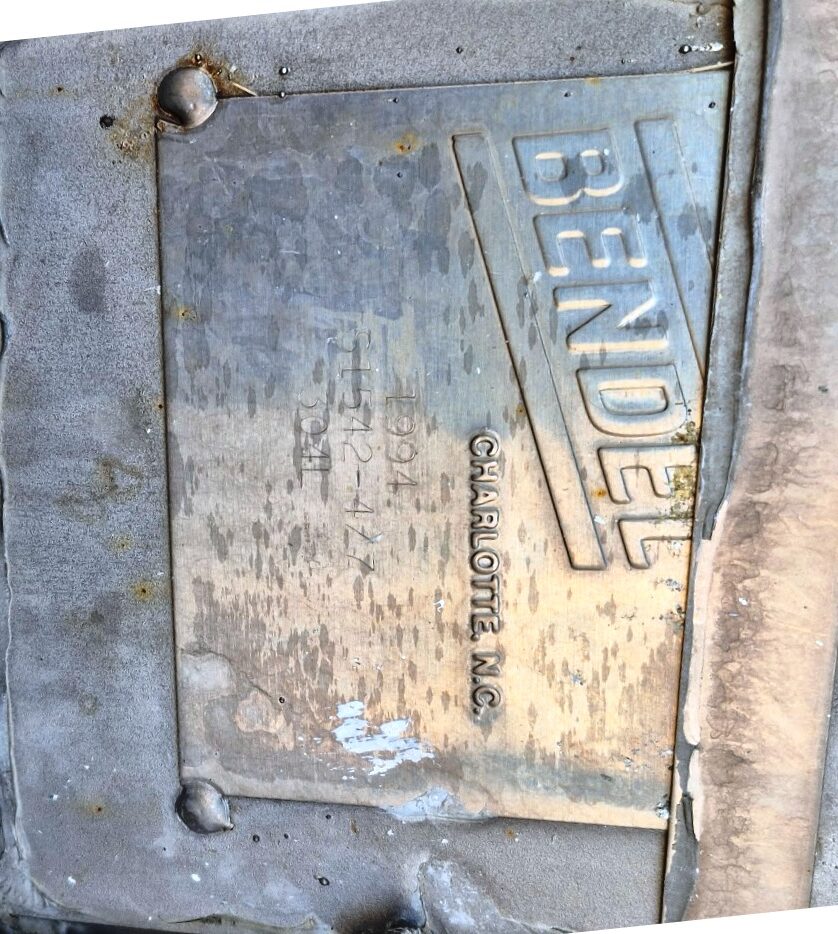

• Manufacturer: Bendel (Charlotte, NC)
• Material: T-304L stainless steel for corrosion resistance
• Shell dimensions: approximately 8' diameter x 24' height
• Insulated with fiberglass and metal cladding (can ship with insulation)
• Steam coils located in tank bottom for heating applications
  • (1) tank with (7) rows of 2" steam coils
  • (2) tanks with (5) turns of 2" coils at bottom wall
• (4) heavy-duty steel I-beam legs with foot pads
• (1) side bolted manway with lifting davit for access
• Suitable for liquid storage, temperature-controlled processing, and industrial applications
• Quantity available: 3 tanks
