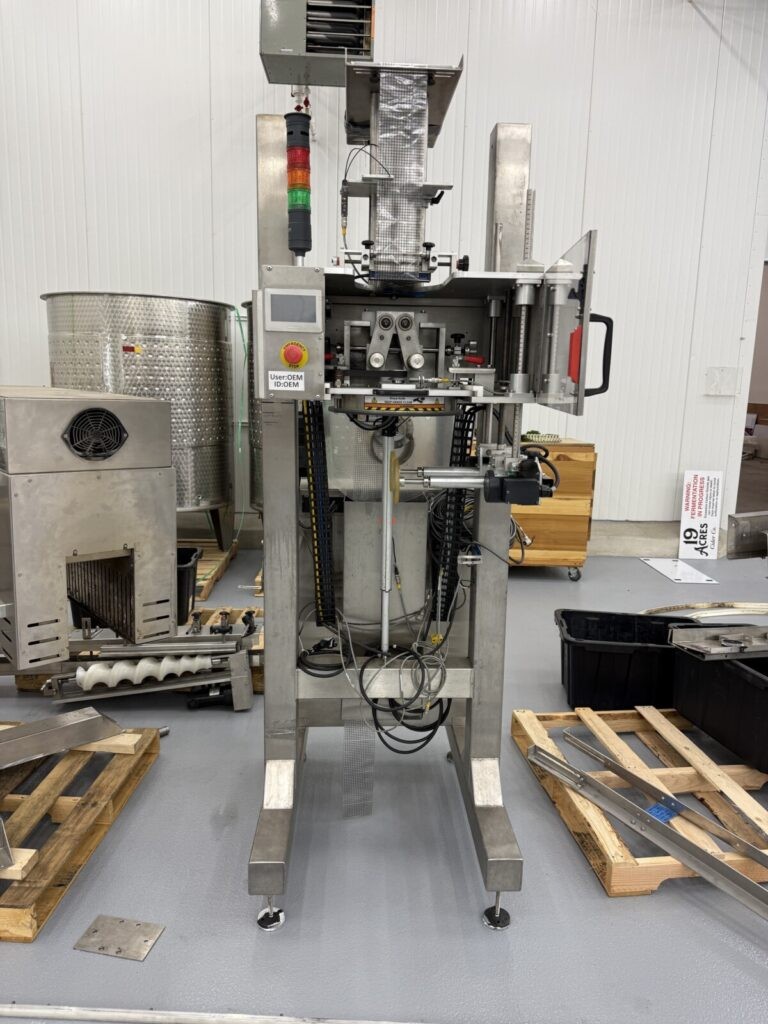

Axon Shrink Sleeve with Dual Tunnel

Used Axon Shrink Sleeve Applicator with:

– Production speed: up to 150 containers per minute, depending on size and application – Container diameter range: 1.18 – 4.92 inches (30 – 125 mm) – Film capacity: – Layflat range: 1.97 – 7.87 inches (50 – 200 mm) – Thickness range: 40 – 70 microns (1.5 – 3 mil) – Electronic height adjustment – Servo driven – Toolless size changeovers – Compatible sleeve applications: – Full body – Tamper evident – Partial – Multi-pack – Applied materials: – PVC – PETG – OPS – PLA – Touch screen HMI – Siemens PLC controlled – Approximate overall dimensions: – Width: 31.3 inches – Depth: 53.4 inches – Height: 83 inches – Stainless steel construction – Air requirements: 60 PSI – Electrical: 1 Phase, 50/60 Hz, 240 Volts

Dual Tunnels
