Belcor 150 Case Sealer with 505 Case Erector

Belcor 150 Case Sealer with 505 Case Erector

- Manufacturer: Belcor Wexxar Packaging Inc., BC Canada

- Model/Serial Number 505-021308 - Pneumatic Operation - Adjustable for various size RSC corrugated boxes (consult factory for specific case capabilities)

   Case Length: Min. 8”, Max. 26.5”

   Case Width: Min. 6”, Max. 16”

   Case Height: Min. 3.5”, Max. - - (3) Threaded Leveler Legs - Operator Controls with E-Stop - Dimensions 49” L x 31” W x 35” H @ 300 lbs.

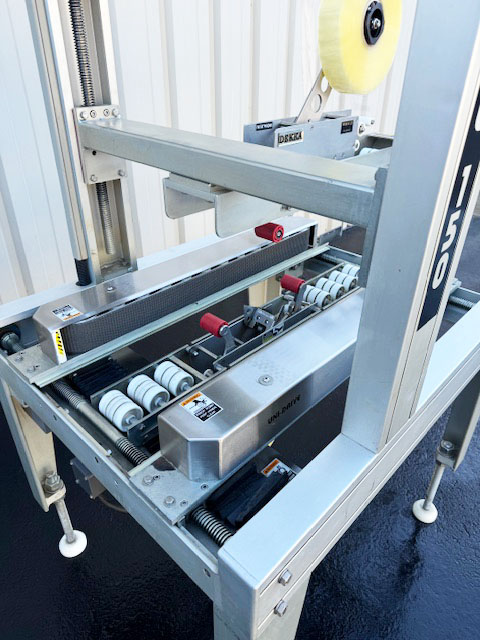

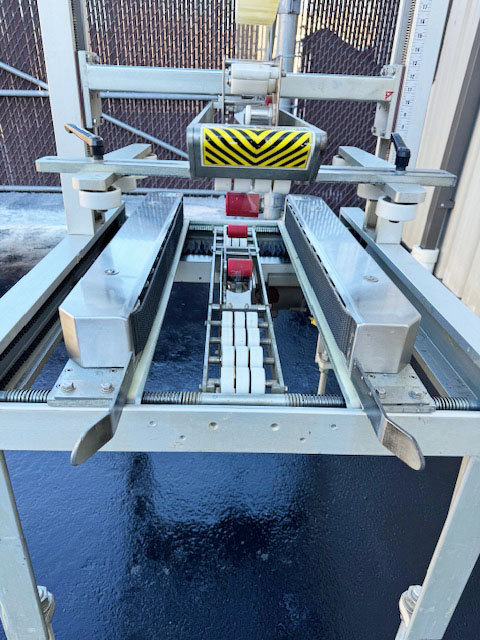

Belcor Model 150 Top & Bottom Case Sealer - Taper

- Manufacturer: Belcor Wexxar Packaging Inc., BC Canada

- Model 150 - Serial Number 150-9664 - Factory rated up to 30 cases per minute

- Includes (2) Dekka 22 Tape Heads for 2” Wide Tape

- Uni-Drive Side Gripper Belts for Case Transfer - Handwheel adjustment for various length, width and height RSC boxes

- Adjustable for various size RSC corrugated boxes (consult factory for specific case capabilities) Case Length: Min. 8”, Max. -

                Case Width: Min. 5-1/2”, Max. 17-3/8”

                Case Height: Min. 4”, Max. 21”

- (4) Threaded Leveler Legs (levelers measure 12” long each) - Conveyor Elevation 33” (adjustable) - Operator Controls

- Electrical 120 Volt, 1 Ph, 60 Hz, 10 Amp - Overall Dimensions 44” L x 36” W x 68” H
