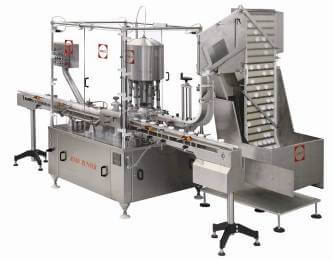

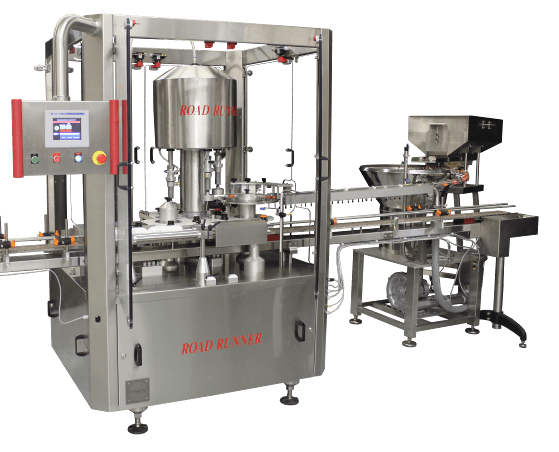

Capmatic Road Runner

Complete mechanical continuous motion capping machine for plastic or glass containers. Approximate speed of 40 to 500 containers per minute depending of sample to handle

• Bottle maximum diameter of 85 mm
• Bottle maximum height of 250 mm
• Cap maximum diameter of 85 mm
• Cap maximum height of 250 mm

Machine controlled with Allen Bradley P.L.C. MicroLogix Multi colors touch screen HMI – Allen Bradley Panel View 600+ 220 volts, 3 phases, 60 Hz, 15 Amp (or specials request available) Air at 100 PSI using 20 CFM 21 CFR part 11 Ready Lexan Euroguarding For:

• press-on cap (rubber stopper, orifice reducer, over cap…) press-on cap with stem/pump screw capping screw capping with stem/pump
• Pharmaceutical aluminum ring-cap
• Pharmaceutical aluminum ring-cap with stem/pump
• ROPP Dual turret design for multiple cap placement Caps with special orientation

Options

• Pneumatic drive
• Electric motor drive
• Servo motor drive
• Torque confirmation/torque feedback with data management
