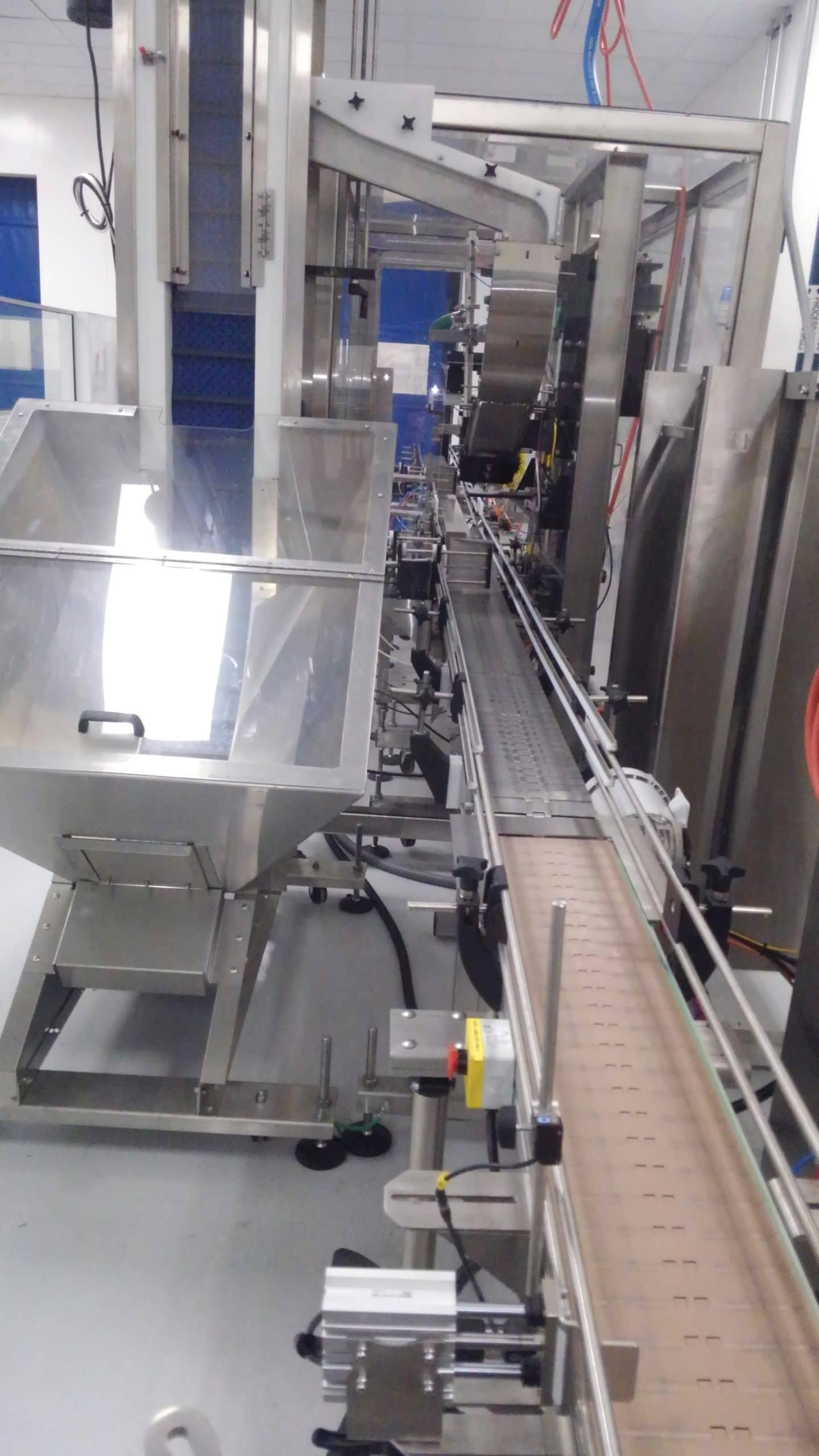

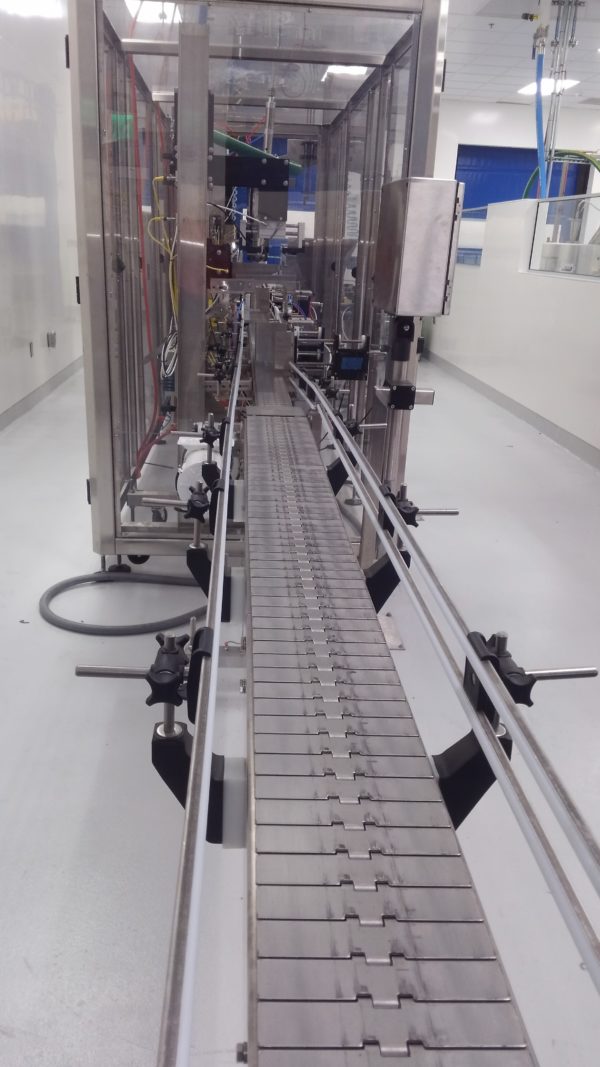

Oden Liquid Filling Line
Model:
ANW1-25-ID
Make:
Oden
Year:
2019
- Filler- 2019 Oden ANW1-25-ID Filling Machine -Allen Bradley Panelview Plus 700 Controls -SS Frame with Leveling Feet and Casters -10′ x 7.5″ Infeed Conveyor -10.5′ x 4.5″ Filler Conveyor -10′ x 7.5″ Outfeed/Capper Conveyor -2″ Gen2 Inward Opening Style Nozzel -316 SS Outfeed Plumbing -Dual Point Indexing Systems on 1″ x 1″ Index Beam -Diving Nozzel System with 14″ Stroke -LMS on Infeed, LMS on Outfeed, and No Bottle No Fill Sensor -Swing out CIP Cup with Drain Port -Safety Enclosure: SS Frame, Clear Polycarbonate Panels, 6 Guard Doors with Interlocks -Controller Power Requirements: 220V -Machine Electrical Requirements: 208V, 1P, 15A
- Capper- 2019 Oden DPR -Capping Rate: Approx 15 Products per Minute -E-Pak Outfeed/Labeler Conveyor -Electrical Requirements: 208V, 1P, 60Hz, 20A -Air Requirements: 80-100 psi at 6-12 CFM -Dimensions: 39″ x 36″ x 86″ -Weight: 2000 lbs
- Labeler- 2018 CDA Ninon Side -Running Temp: 50°F – 86°F -Electrical Requirements: 208-250 V, 50-60Hz, 1P, 16A -Air Requirements: 4 m³/hour at 4 bars (58 max psi) -Conveyor height: 37″ -Labelled Products: Cylindrical & Flat Products -Production rate: 1,500-2,500 per hour -Roll Dimensions: Inside Diameter: 75mm (2.95″) Max Diameter: 260mm (10.2″) Max Roll Height: 160mm (6.3″) Space Between Labels: 3-5mm (0.12-0.2″) Quality of the Support Band: 90g/m² (3.17 oz) Roll Storage Temp Range: Dry 59°F-65°F -Weight: 550 lbs. -Dimensions: 98.4″ x 63″ x 47.2″
- -Line was used to package 10L containers, filled by weight, and filled with liquid cosmetics. -Manuals included -Runtime hours: 4-5 hours, little use
