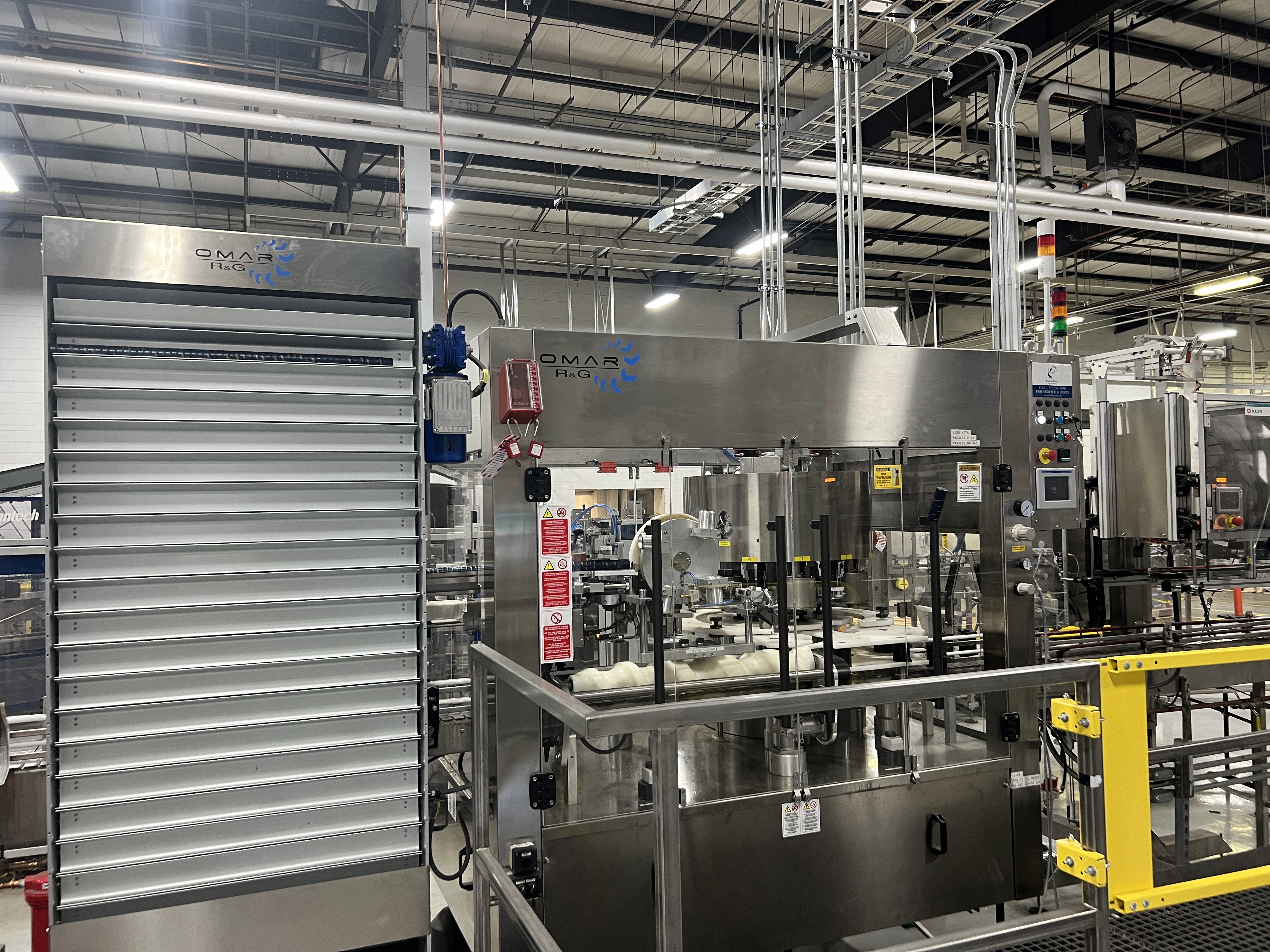

Omar Galaxy 6+6 TR Automatic Capsuling Machine

Omar Galaxy 6+6 TR Automatic Capsuling Machine

Omar Galaxy 6+6 TR Automatic Capsuling Machine
  • Omar Galaxy 6+6 TR automatic capsuling machine

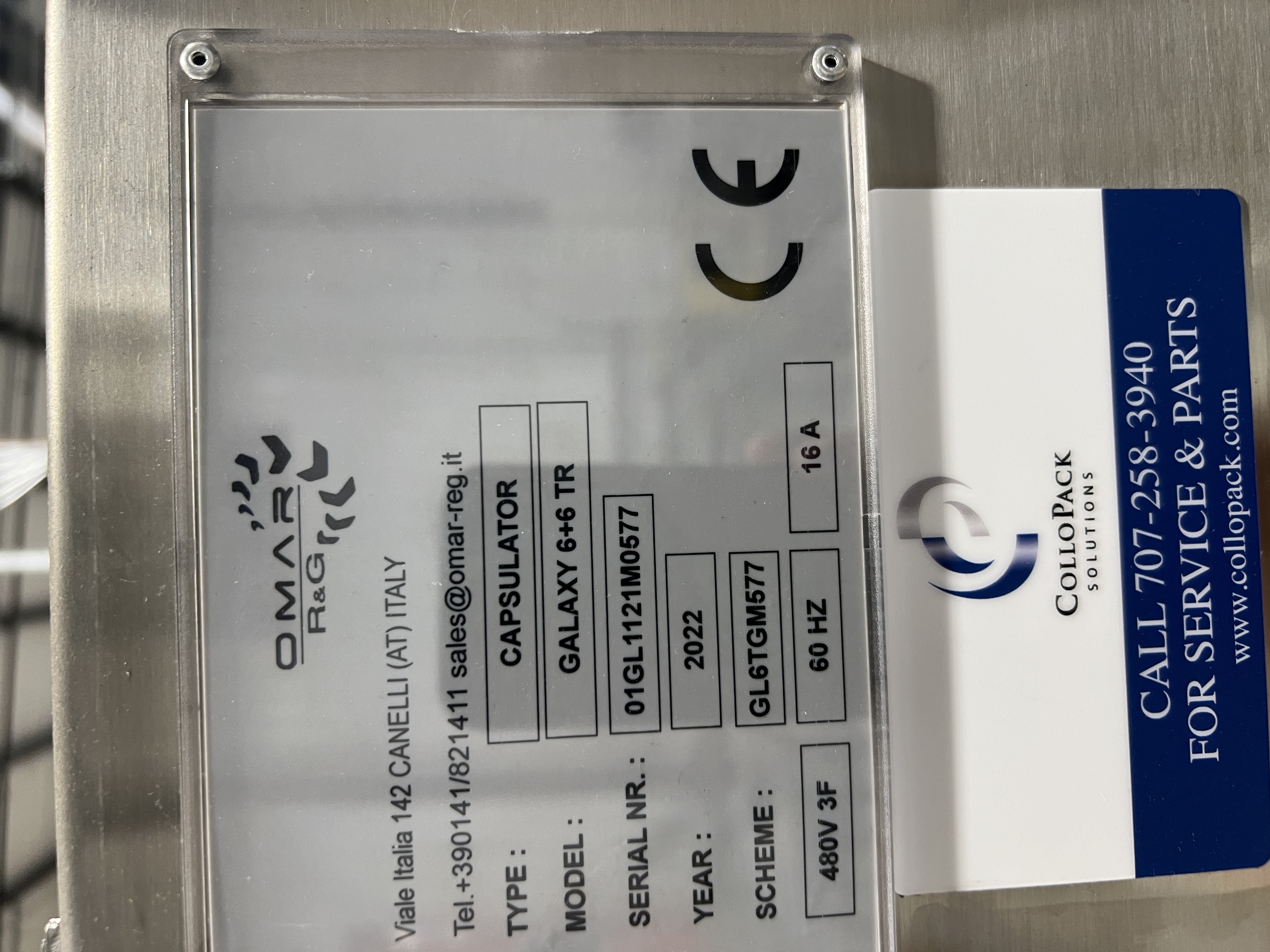

  • Serial Number: 01GL1121M0577
  • Year: 2022
  • Rotary capsuling machine with turret design
  • Six thermo-shrinking heads and six spinning heads
  • Rotary automatic capsule dispenser with multiple moving cups
  • Designed for PVC, polylaminate, and aluminum capsules
  • Production speeds:
    • Thermo-shrinking: up to 150 BPM
    • Spinning: up to 100 BPM
    • Combined operations: up to 50 BPM depending on format

Working Range:

  • Bottle diameter: 60–133 mm
  • Bottle height: 180–234 mm
  • Capsule diameter: 28–34 mm
  • Capsule height: 40–65 mm

Construction:

  • Stainless steel A304 frame and conveyor bed
  • Safety enclosure with emergency micro switches
  • Electrical: 480V / 3 Phase / 60 Hz
  • Auxiliary voltage: 24V DC
  • Air requirement: approximately 160 L/min at 5 bar
Category: Capsuling Machines
Availability: Available

Description

Production Speed: Spinning speed: 100 bpm (depending on the capsule quality and bottle format) Spinning, Blade & Bow speed: 50 bpm (depending on the capsule quality and bottle format) Thermo-shrinking speed: 150 bpm (depending on the capsule quality and bottle format) Working Range: Bottles:  Min/Max 60-133 mm in diameter  Min/Max 180.97-234.7 mm in height Capsules:  Min/Max: 28-34 mm in diameter  Min/Max: 40-65 mm in height Please note: R&G strongly recommends placing the capsule on the bottle prior to labeling, and will not be held responsible for any label damage or scuffing, if the capsule is placed on the bottle after labeling Technical Data:  WORKING DIRECTION: clockwise (bottles passing inside the machine from left to right) – To be confirmed upon order.  VOLTAGE: standard 480 V 3 Phase 60Hz AUXILIARY VOLTAGE: 24 V DC.  AIR CONSUMPTION AT 5 BAR: 160 l/min approx.  WORKING TABLE HEIGHT: to be confirmed.  CONVEYOR SECTION: 110x120 mm closed.  CHAIN: to be confirmed. Description:  Machine with a specially designed increased pitch to handle bottles based on the dimensions indicated  Machine able to dispense and close PVC, polylaminate and aluminum capsules  Clockwise (left to right) working direction  Stainless steel A304 conveyor bed with adjustable rails to insert the machine in the line.  PLC controlling the functions of the working cycle.  Capsule magazine with 1 horizontal tray.  Bottle spacing occurs via a screw, starwheels and conveyors with device for a quick format changeover.  Balancing infeed screw.
Mechanical separation of the capsules before capsule dispensing
into the cups.
 Photocells at the inlet and at the outlet of the machine for bottle
flow control.
 Rotary automatic capsule dispenser with six (6) moving cups.
 Cork detector: no cork, no capsule.
 Capsule pressing device.
 Rotary automatic capsule dispenser with four (4) moving cups
 Rotary turret with six (6) ventilated thermo-shrinking heads and six
(6) R&G pneumatic spinning heads, with the same features as the
R&G mechanical spring loaded head, but with the following
features:
o Ability to adjust the roller pressure in a centralized way (through
pressure adjuster/manometer) also during the production phase
 Lower roller wear and stress of the capsule (brightness
improvement) due to the spinning phase that occurs only during
the ascent of
the bottle into the spinning head
 Automatic lifting of the thermo-shrinking heads in case of line
stoppage.
 Six (6) bottle lifting pistons with changing phases, moved by
double mechanical cam.
 Machine chassis covered with stainless steel A304
 Safety enclosure made in stainless steel A304, with emergency
micro switches on the doors
 Infeed screw and starwheels with safety device
 Wiring in accordance with CE safety regulations
 Machine frame covered with A304 stainless steel material
 Parts to handle one bottle and capsule format
