SKA Depalletizer
SKA depalletizer for sale with integrated sleever and steam tunnel system, designed for efficient container handling and automated pallet unloading in packaging operations.

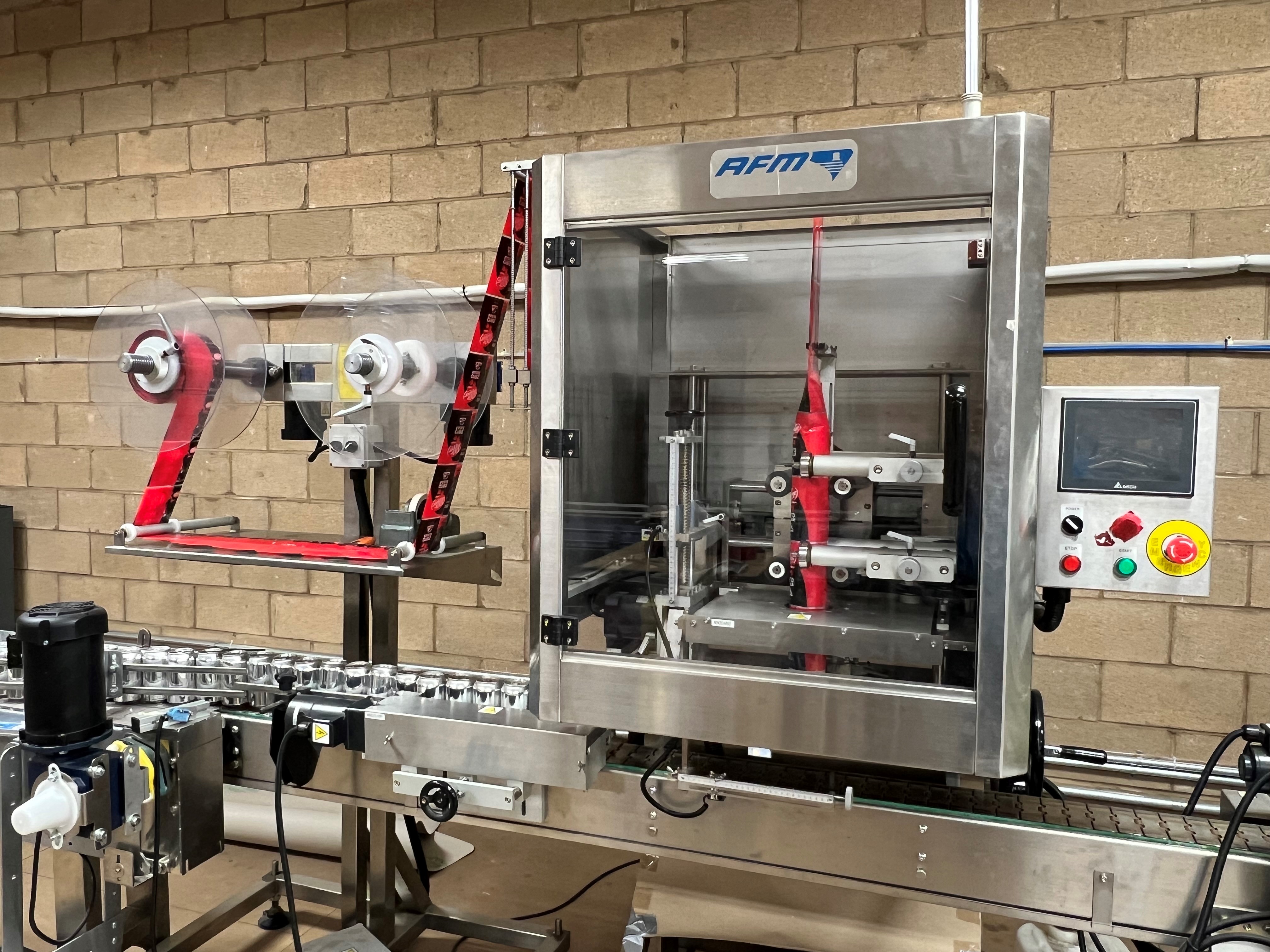

Includes Packaging Systems Integration LX150 Bullet Style Sleever/Steam Tunnel

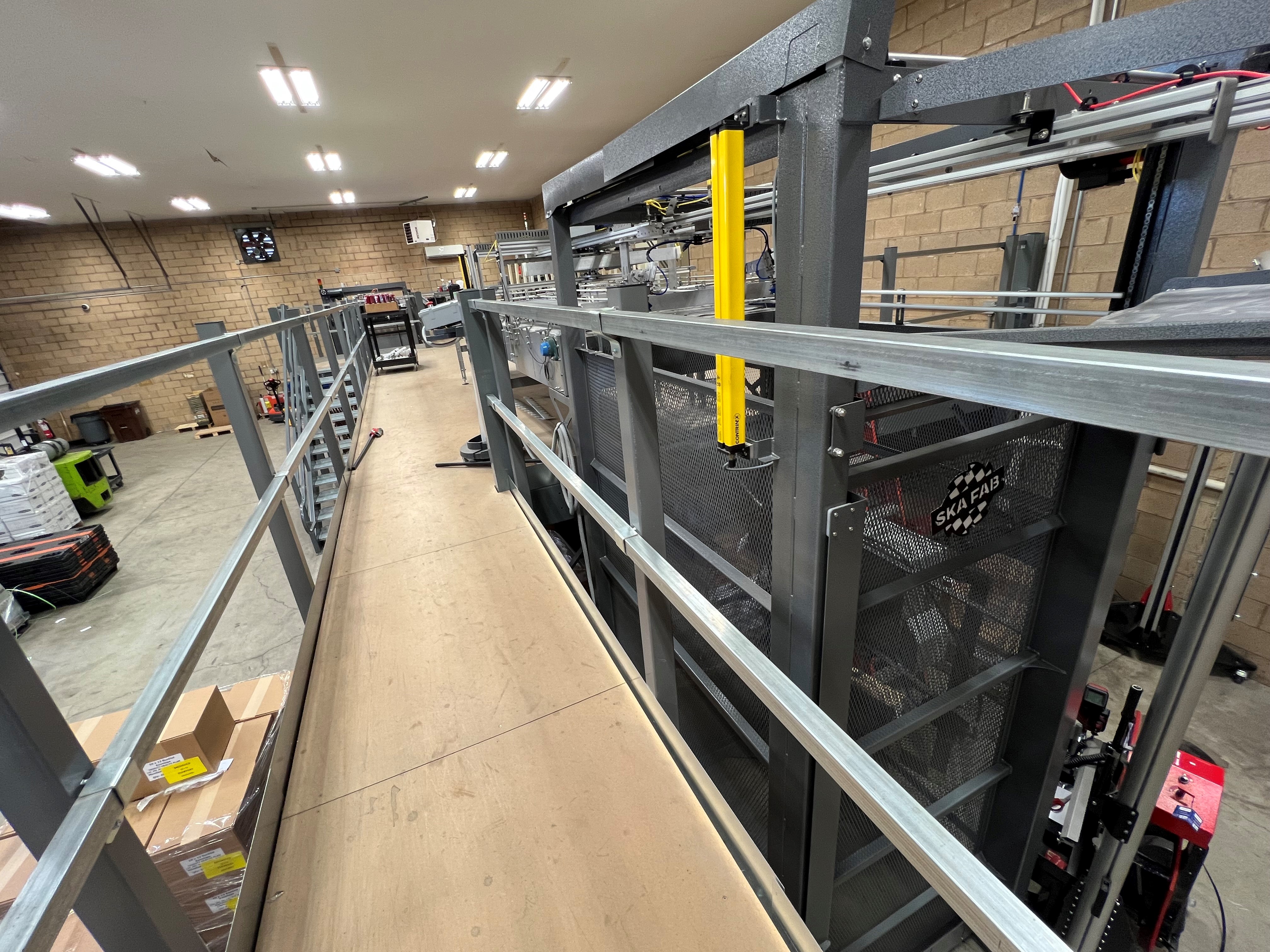

• Mezzanine for system to sit on
• Heavy-duty tubular carbon steel frame construction
• Industrial powder-coated finish for enhanced
corrosion protection
• Heavy-duty aluminum side walls
• Accepts 44” x 56” or 48” x 40” pallets
• 120” discharge elevation
• Can be configured to push containers lengthwise (48” side of pallet) or widthwise (40” side of pallet)
• FHA 3000 has a 1HP motor with 1000lb lifting capacity
• FHA 5000 has 3HP motor with 4,000lb lifting capacity
• Integrated four-point cable-lift system built within the frame
• Easily adjustable elevation detection system for precise layer indexing
• Sweep assembly frame initiates when downstream photo eye indicates space available
• Pneumatic slip-sheet removal system with dunnage rack
• Pinch-point guarding and safety signage throughout
• Fully integrated PLC with quick-access diagnostic screen
• Main screen shows how many layers are programmed to run and keeps count of how many layers have ran
• 20 product (container) presets in product selection menu
• Product presets allow for tool-less product changeovers
• User friendly HMI touch screen (7” LCD) with auto/manual controls
• Multicolor LED stack light indicator for pallet change over and/or machine fault
• Electrical panel safety disconnect/lockout and e-stop for operator safety
• 480V/3 Phase/60 Hertz (additional voltages available)
• 80-100 PSI clean air supply required – 2-3 CFM
Category:
Depalletizers
Availability:
Available
Description
This SKA depalletizer is a high-performance automated system designed to streamline pallet unloading and container handling in beverage, food, and packaging environments. Built with a heavy-duty tubular carbon steel frame and industrial powder-coated finish, this depalletizer offers durability, corrosion resistance, and long-term reliability in demanding production settings.
This system includes a fully integrated Packaging Systems Integration LX150 bullet style sleever and steam tunnel, providing a complete solution for depalletizing and downstream packaging. The included mezzanine allows for proper system elevation and efficient plant layout integration, making this depalletizer a strong fit for high-throughput production lines.
Designed for flexibility, the depalletizer accepts both 44” x 56” and 48” x 40” pallets and can be configured to push containers either lengthwise or widthwise depending on operational needs. The integrated four-point cable lift system provides precise and stable layer handling, while the adjustable elevation detection system ensures accurate indexing throughout the depalletizing process.
The system is equipped with advanced automation features, including a PLC control system with a user-friendly HMI touchscreen, allowing operators to monitor performance, select product presets, and perform tool-less changeovers. With up to 20 product presets available, this depalletizer supports quick transitions between container types and production runs.
Additional features such as pneumatic slip-sheet removal, sweep assembly automation, and built-in safety systems enhance operational efficiency and reduce manual labor. This SKA depalletizer is an ideal solution for facilities looking to improve throughput, maintain consistent product flow, and integrate depalletizing with downstream packaging systems.
