Stephan Universal Mixer (Never Used)

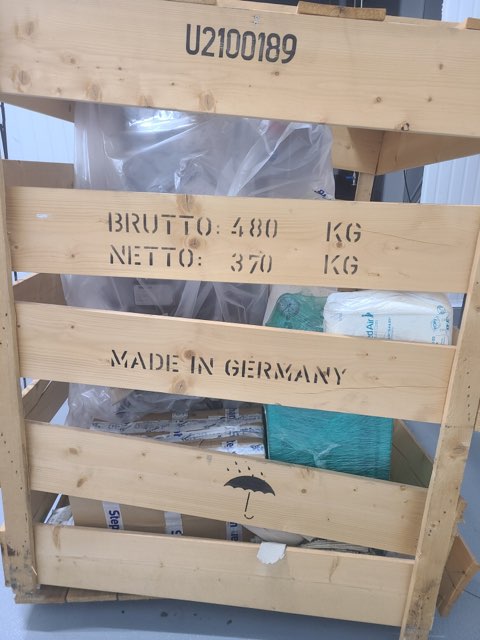

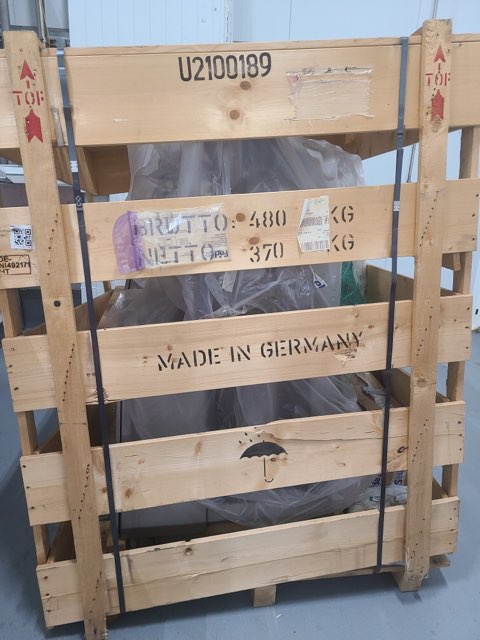

Brand New, Never Used, Still-in-its-Original-Shipping-Crate
022 STEPHAN UNIVERSAL MACHINE TYPE UM/SK 24 E Vertical Mixer For cutting, mixing, thermizing For production of Cheese Products, sauces, marinades Bowl contents: approx. 30 liter/Batch size: up to 18 liters max.
Working temperature: max. 95 degrees C Working overpressure: max. 0.0 bar pü Product contacting components 1.4301 o.ä. (V2A). Surface outside ceramic blasted. Surface inside ceramic blasted. Machine chassis stainless steel.
Available NOW at a substantial discount from the original purchase price!
View the Stephan Universal Mixer Brochure
Category:
Blenders
Availability:
Available
Description
Stephan Universal Mixer (Never Used)
MAIN MOTOR: Directly flanged at the bowl via bearing shield, Incl. Motor hood With direct drive of the motor shaft 60 Hz = 7.5 kW Variable Frequency Drive (VFD) controlled 300….3000 rpm. Sealing rings for motor shaft.
WORKING TOOLS - MAIN MOTOR: Knife shaft stainless steel inserted at the motor shaft with 2 wave-cut knives, 2D0003-06 .

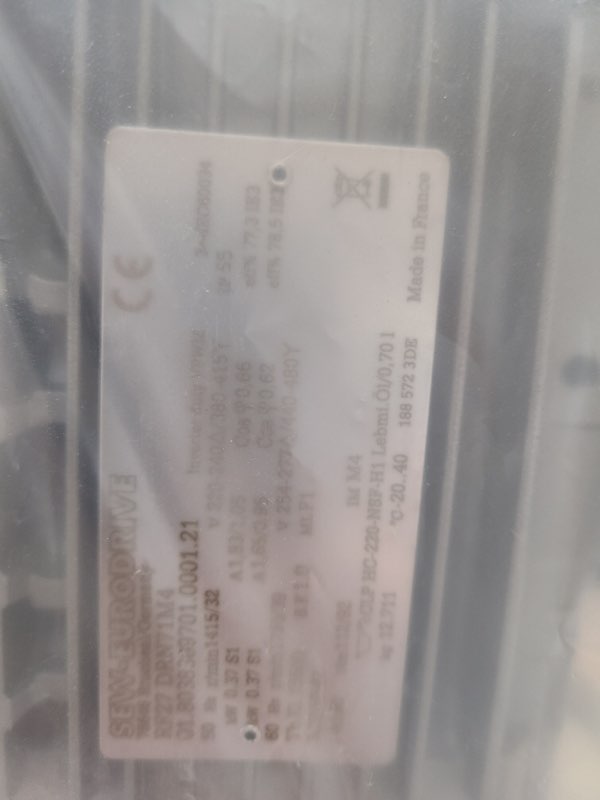

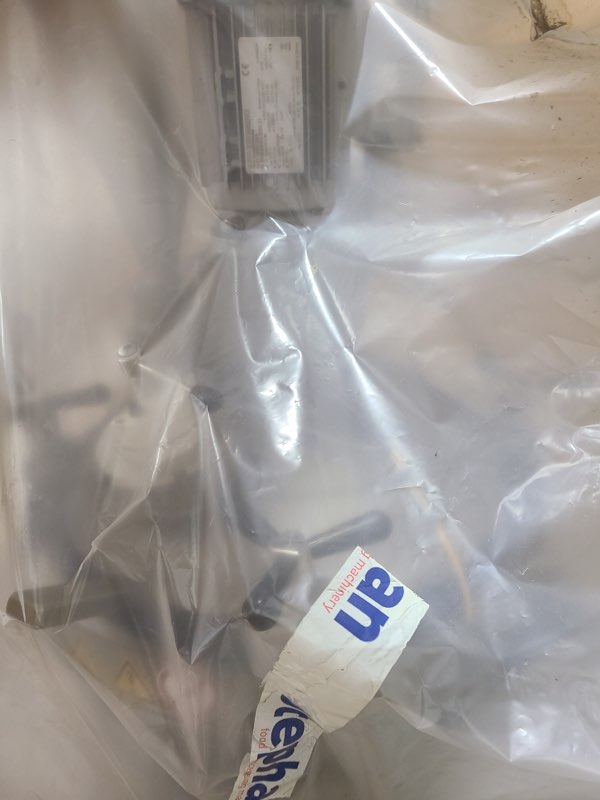

GEAR MOTOR: Directly flanged at the cover with direct drive of mixing baffle, brake motor and positioning switch Type RF 27 DT71D4, 0.37 kW Sealing rings for gear motor.
WORKING TOOLS: GEAR MOTOR Mixing baffle stainless steel with scraper for bowl and cover.
BOWL: Stainless steel flanged on the bearing shield, manually tiltable for product discharge. DOUBLE JACKET - water and steam - For indirect cooling or heating of bowl contents Steam pressure 2 bar pü. With fittings, valves and switching devices for water and steam connection.
TEMPERATURE FEELER: Finger feeler PT 100 mounted in the bowl Temperature indication via soft touch panel.
DIRECT STEAM INJECTION: Steam relief valve for direct heating of the bowl contents mounted in the bottom of the bowl.Steam pressure 2...4 bar pü. Tube connection in metal tubes for steam.
DISCHARGE CONNECTION: DN 65 with sealing plug. Stainless steel cover with hinge mounted at the bowl.
DOSING CONNECTION PIECE: DN 32 Mounted on the cover with pneumatically operated disc valve DN 32.
SAFETY UNIT: Safety valve 0 bar
VACUUM UNIT: With contact manometer, Pneumatically operated vacuum valve, Pneumatically operated aeration valve Control of vacuum pump by soft touch panel.
VACUUM PUMP: (water vein) 60HZ = 1.1 kW Evacuation capacity: 20 cbm/h at 100 mbar. Stand alone CEE-socket mounted in control cabinet

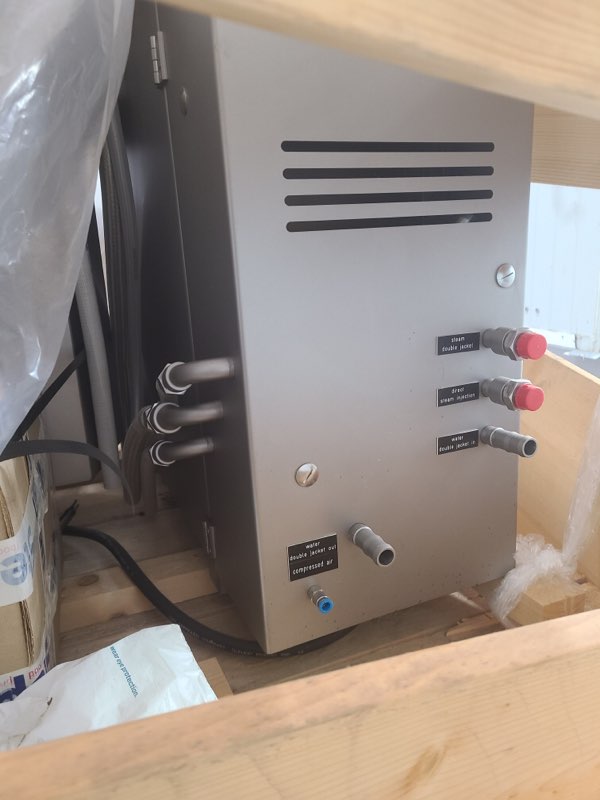

ELECTRICAL CONTROL: Operating voltage 480 V, 60 Hz, three-phase. AC Control voltage: 24 VAC Control cabinet stainless steel mounted at the machine chassis. Load part contactor via soft touch keyboard 3011 with 2 lines text indication in lighted LCD display. Operating buttons lighted For manual operation of main and gear motor including timer and temperature indication, emergency button.
Utility Requirements To Be Provided By Customer: Electrical: 220v/60/3 Phase- 60 Amp magnetic or slow blow breaker. Water for vacuum pump at standard tap pressure. Water Connection DN 15. Steam: 2-4 bar Steam Connections ½” socket. Air Supply for Discharge Valve: 60-80 psi Air Connection 8mm.
