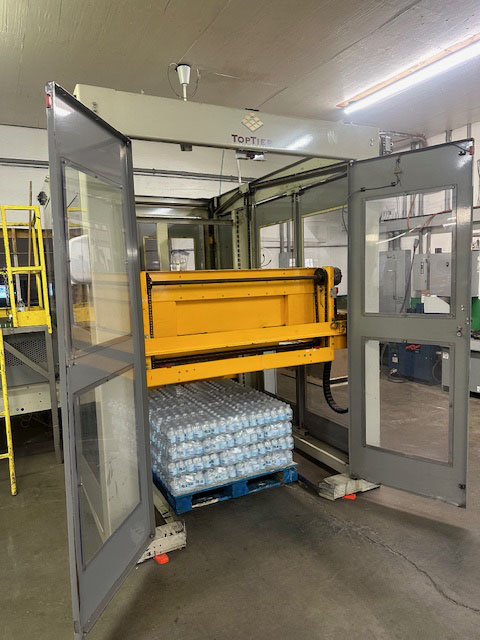

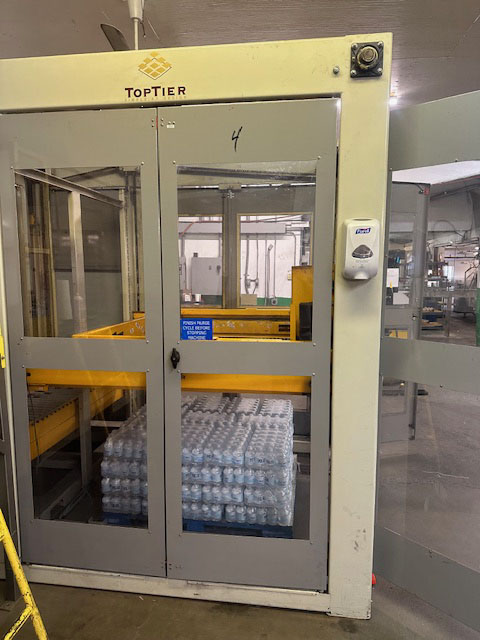

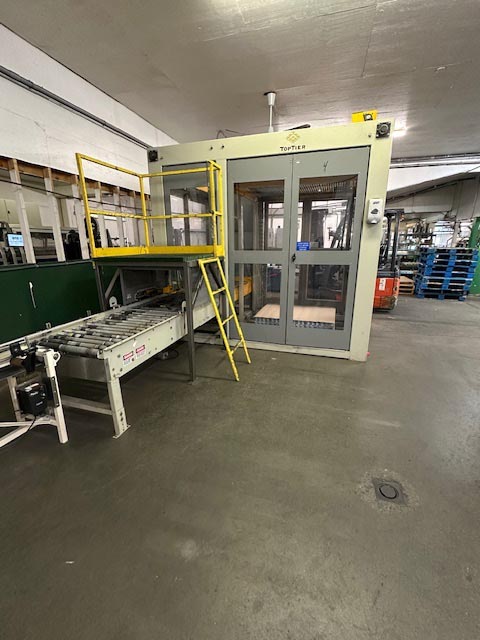

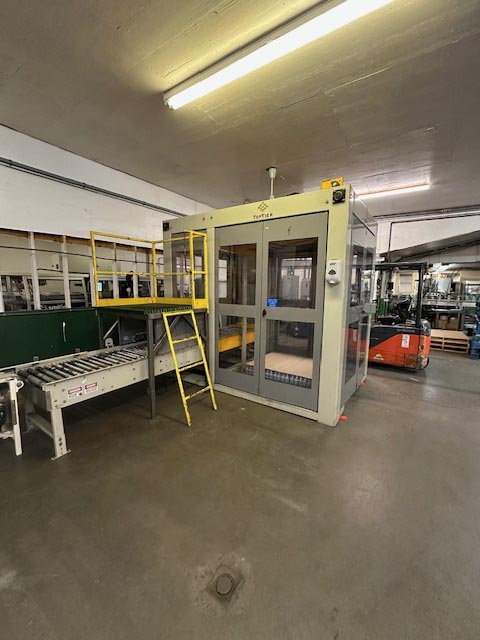

TOP TIER Mini-Pal Automatic Low Level Palletizer

TOP TIER Mini-Pal Automatic Low Level Palletizer

- Model Mini Pal - Serial Number 061002 - 2006 Year of Manufacture - Factory Rated 12 CPM - 72” Max Pallet Height - Minimum Layer Dimension: 38" - Maximum Layer Dimension: 50" - Standard Layer Weight – 300 Lbs. - Case Infeed Metering Conveyor - 82” Long x 35” - 28” Case Infeed Elevation - Case Turner - Row Build Conveyor - Layer assembly - Layer Hoist - Empty Pallet Staging - Pattern Programming and Selection - Product Detection - Safety Interlock Doors - Platform(s) and Stairs Included - Allen Bradley Power Flex Speed Controllers - Allen Bradley Compact Logix L32E PLC - Allen Bradley Touch Screen Panel - Operator Interface Controls - Electrical 460 Volt, 3 Ph, 50/60 Hz, - Air Requirements 80-90 psi @ 3-5 scfm - Operators Manual and Documentation Included - Overall Machine Dimensions: 115” Long x 83” Wide x 9’ High
