Viking Masek FFS

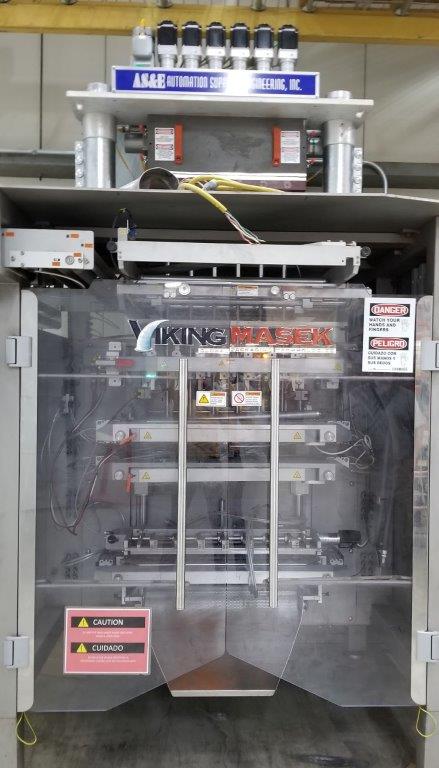

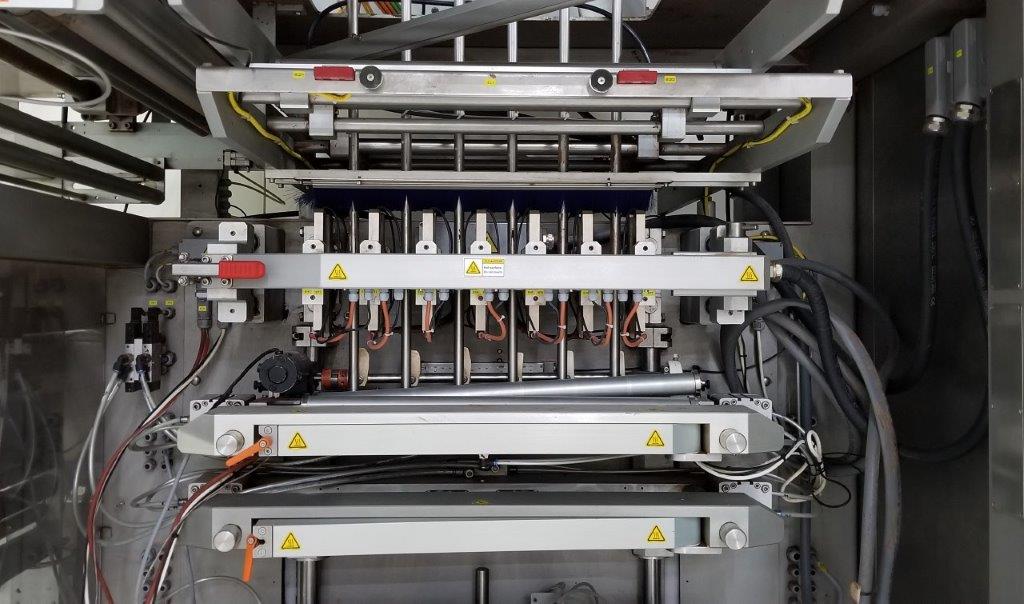

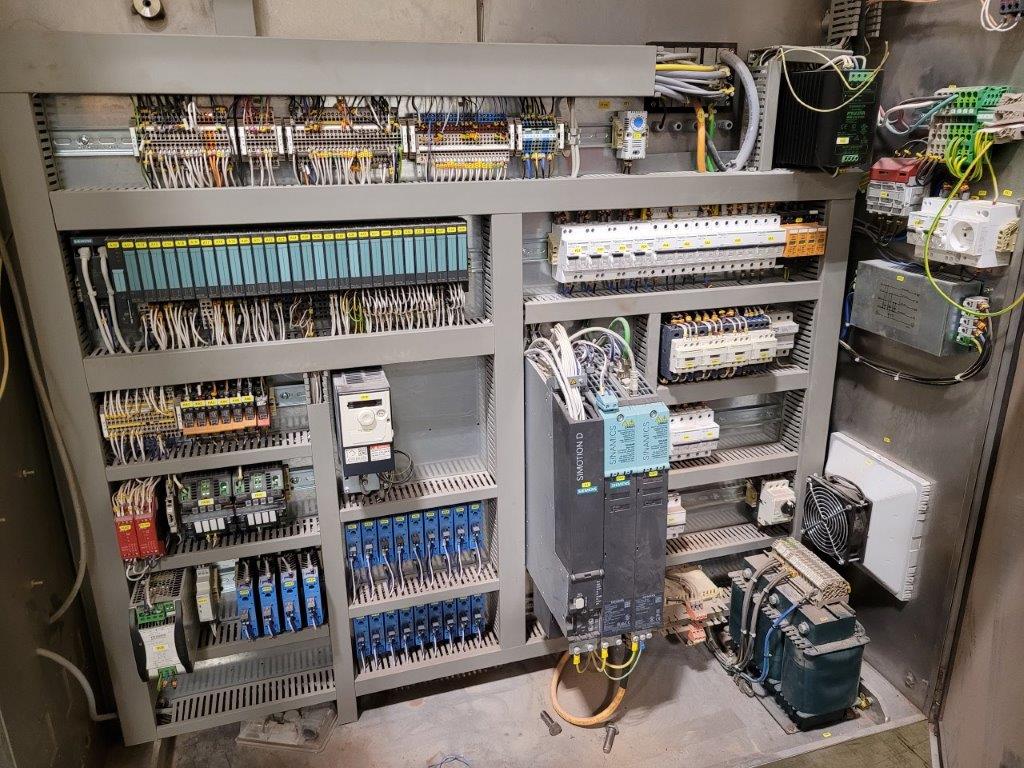

' 1. Infeed: Vacuum Loader” free flow granular conveying system:         $ 9 ,920 Vibra - Pulse filter cleaning system Includes 14” diameter welded aluminum receiver housing, high level control of receiving hopper Gravity flapper valve, high level for receiving hopper Brushless motor with variable speed Pulse cleaning system 20’ flexible hose with one (1) pick - up lance Three (3) extra 14” PTFE felt filters 14” white gasket Extra 20’ of 2” I.D. PVC clear flexible hose with ground wire Aluminum transition hopper and lid assembly A flexible sleeve will connect the transition hopper to the auger hopper. Entire  Vacuum feed system will convey material at a rate of 1,800 lbs. per hour. Ceiling hung by customer. 2. SA600  Sachet Packaging machine,         Servo Auger     Filler and accessories: Viking Masek SA600 Intermittent Motion Sachet Machine including: Electrical Specifications: 480V, three phase, 60Hz., 20 amps Pneumatic Requirements      - TBD/CFM@ 90PSI of clean, dry air (supplied by customer) SA600 configured for        six  ( 6 ) lanes of  100 mm wide sachets Baluff sensor for auto film tracking Siemens Controls, color touch screen HMI upgrade Servo Upgrade, servo jaws with horizontal end seal pattern and servo film draw down Cold pull station AS&E  6 lane  servo auger  filler Straight cut across top and bottom seals Serrated seal pattern Tear notch Film edge trimming with suction     - motor driven system Stationary  heat  sealing station Air Deflator        - Sponges Dust extraction nozzles (customer to supply         vacuum) Printer registration bracket Set of operator manuals Packing/Palletizing 3. Printer: Markem - Imaje 1050 Dual ½” Printhead Thermal Ink Jet       Printer with Traversing Head    $36,900 Including  power  cord,  Control  Box,  (2)  ½“  print  heads,  open  ferrit  cable, 300  DPI,  variable alphanumeric  data  and  barcode  capabilities  within  print  height   , control  box  mount,  600mm  travel traverse, connectors and manuals.
